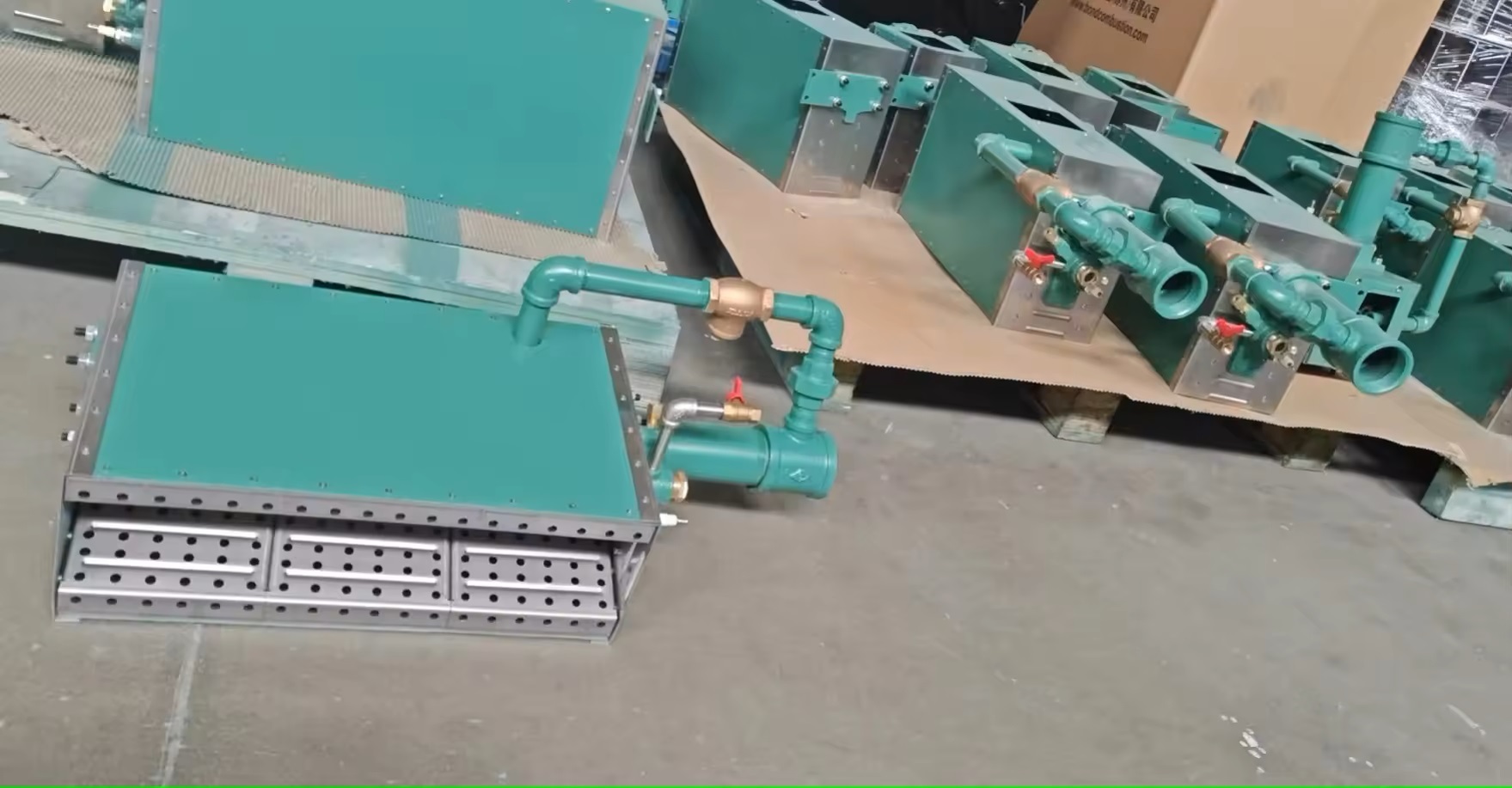

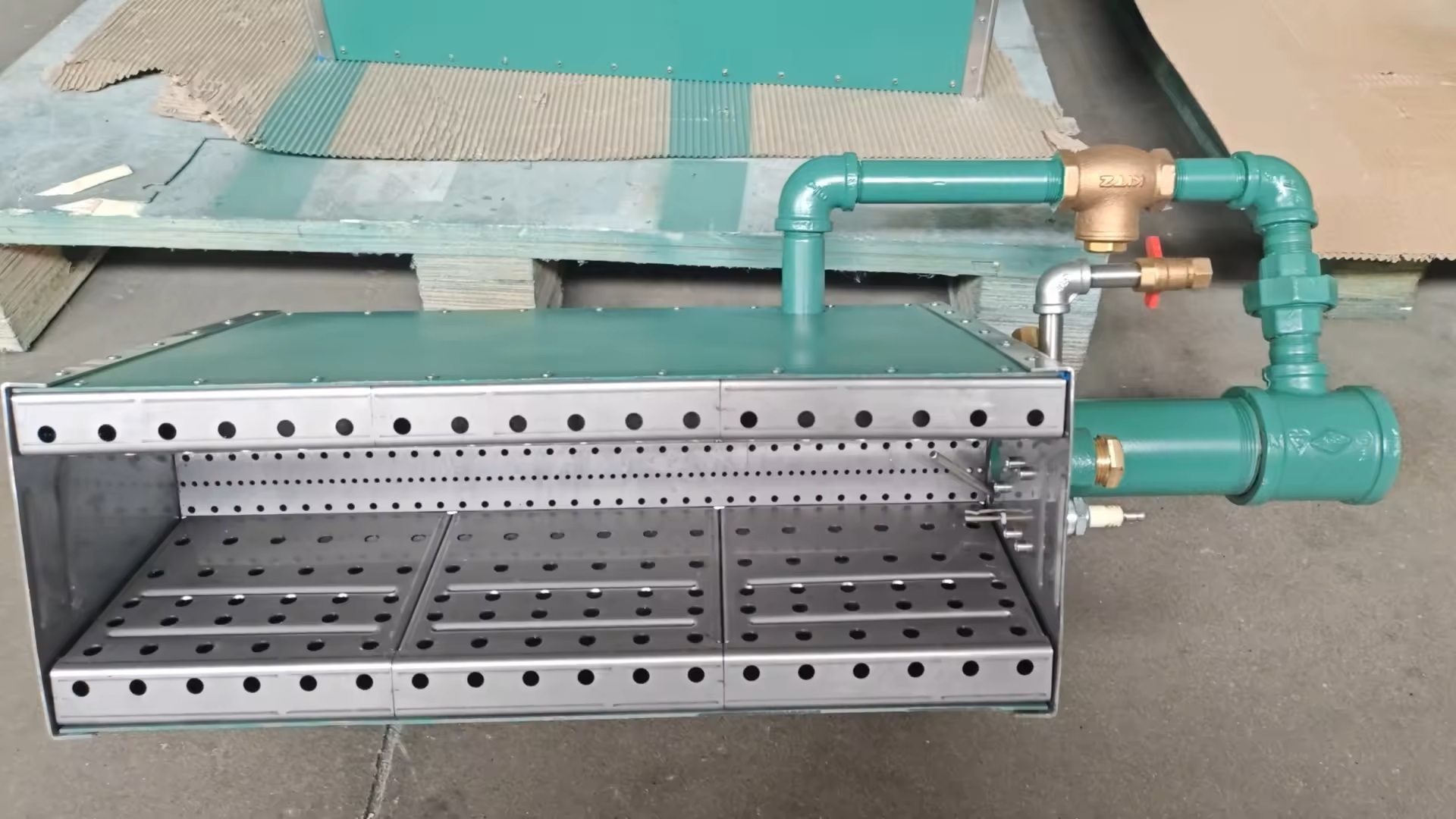

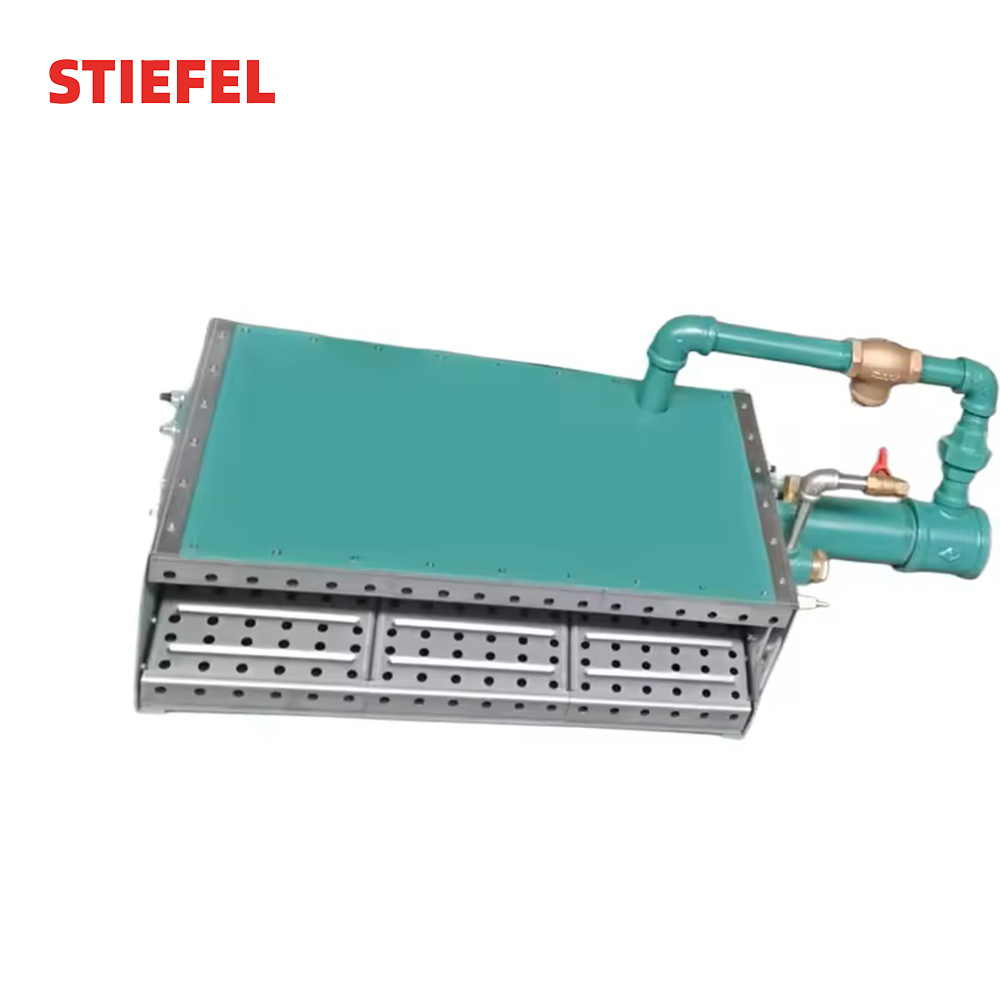

RAH Air Heating Burner v1 -Max. input 132-1085kW

Air heater burner
Input up to 1,000,000 Btu/hour/linear foot (962 kW/m)
Adjustment ratio: 40:1
maximum. Process temperature: (815°C)
Fuel: Natural gas, propane and butane.
Low CO2 emissions. Compact modular design. Rugged, reliable performance
  • RAH Air Heating Burner v1 -Max. input 132-1085kW
  • RAH Air Heating Burner v1 -Max. input 132-1085kW
  • RAH Air Heating Burner v1 -Max. input 132-1085kW

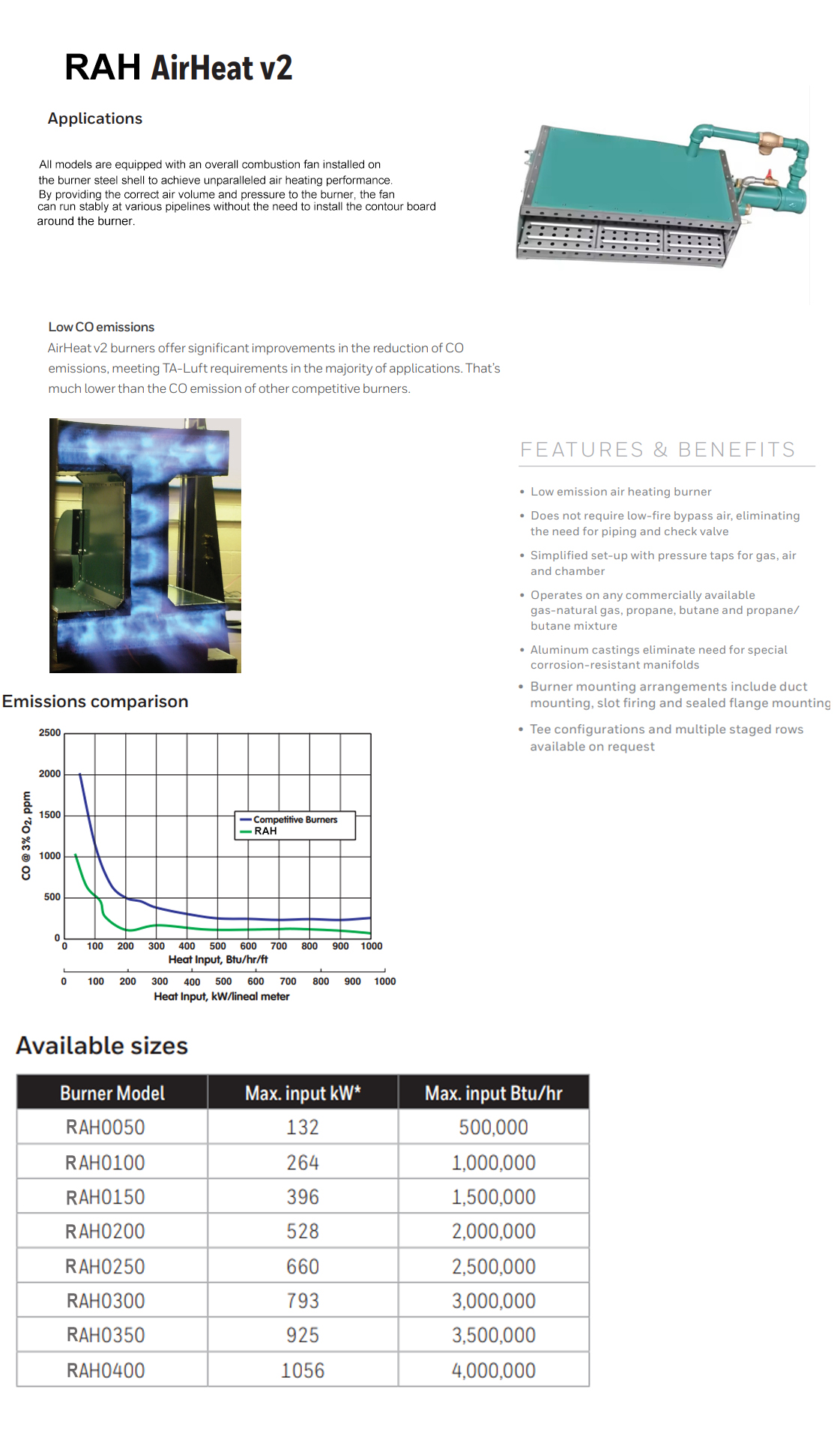

SPECIFICATION

Description

As an industry standard, this low emissions AirHeat burner has a compact modular design that provides reliable operation year-after-year, with minimal maintenance. Applications include ovens, dryers, fume incinerators and similar industrial equipment.

All models are equipped with an overall combustion fan installed on the burner steel shell to achieve unparalleled air heating performance. By providing the correct air volume and pressure to the burner, the fan can run stably at various pipelines without the need to install the contour board around the burner.

Airheat burner burns natural gas or propane (also provided buttane version), and can order a burner without a blower for re -circular air application.
