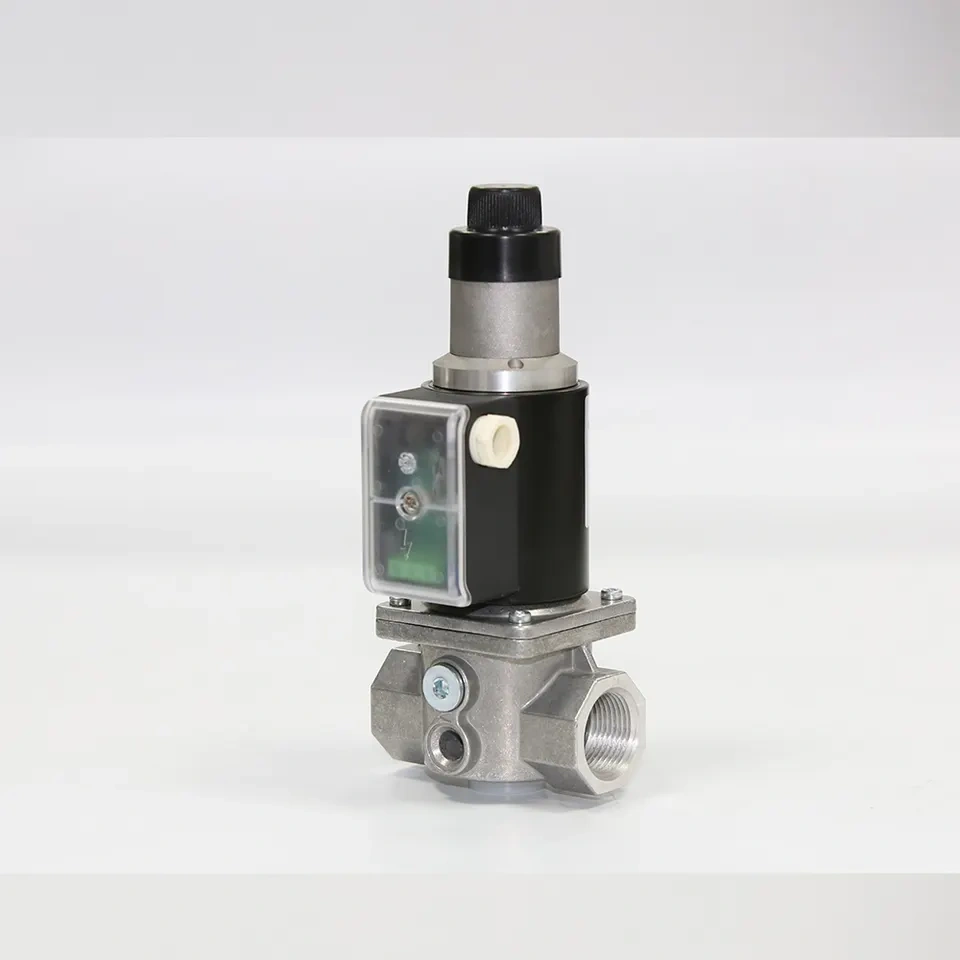

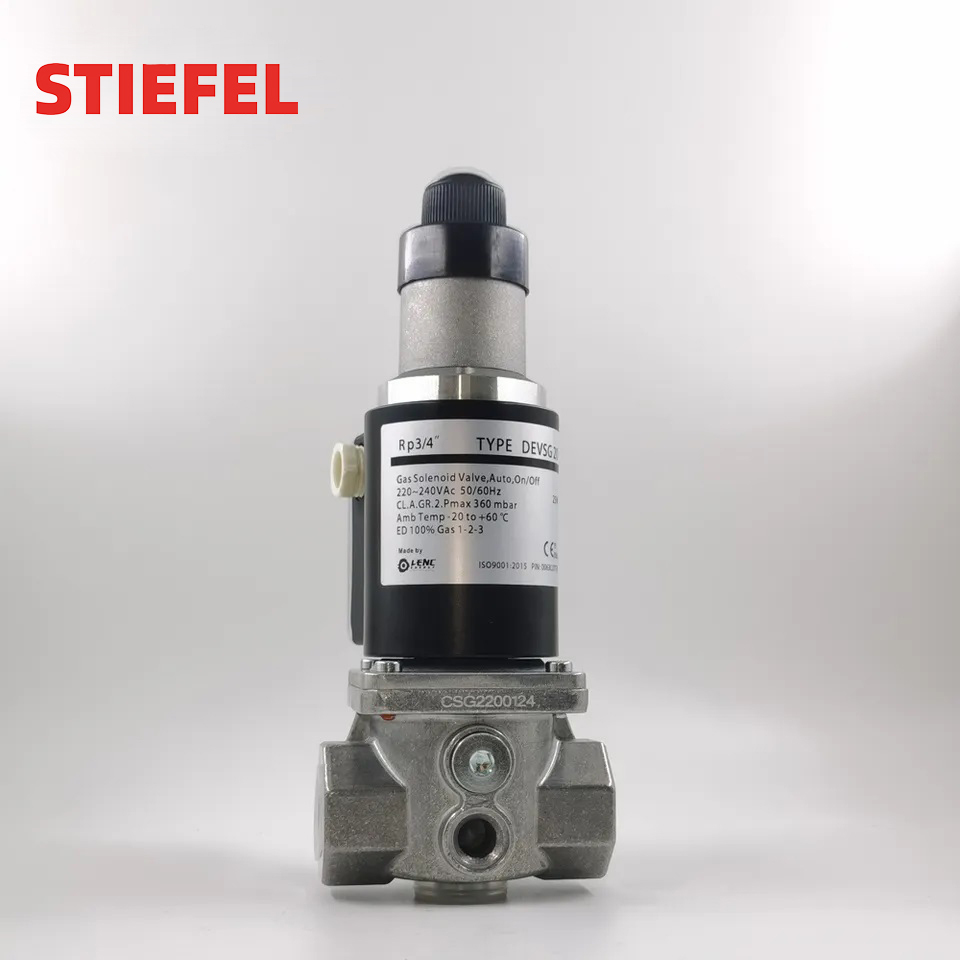

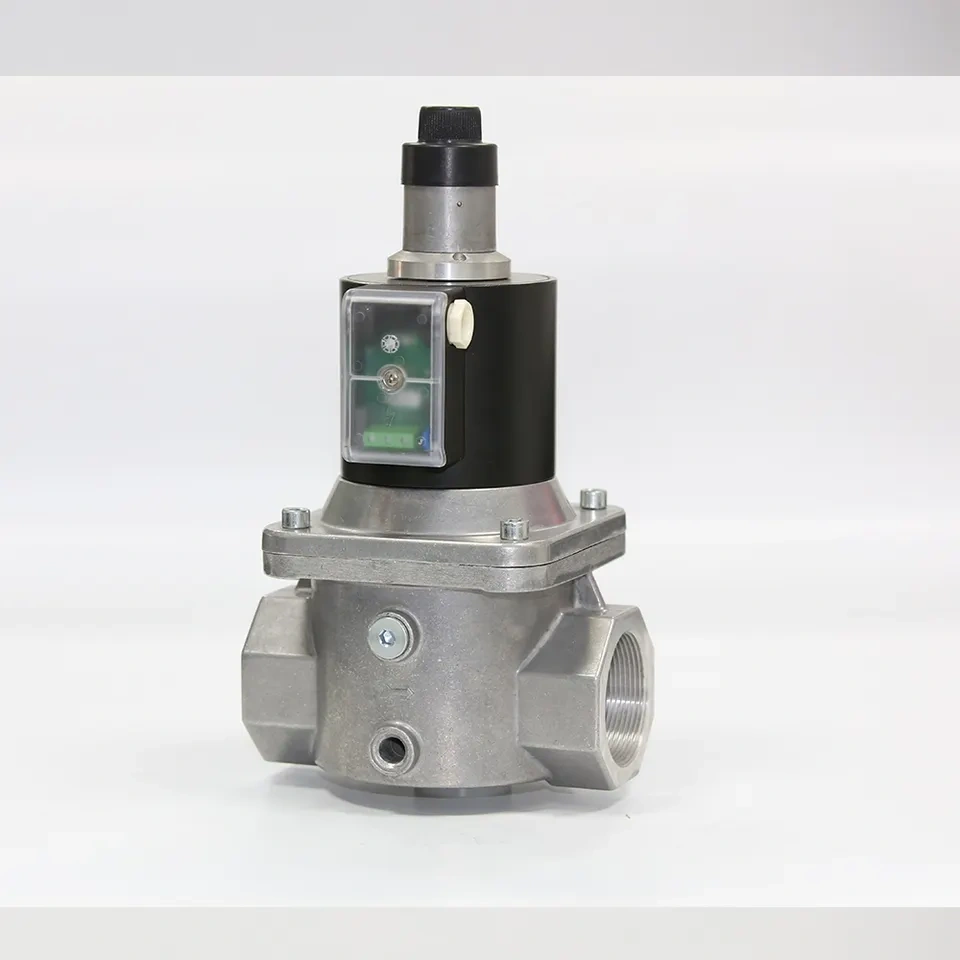

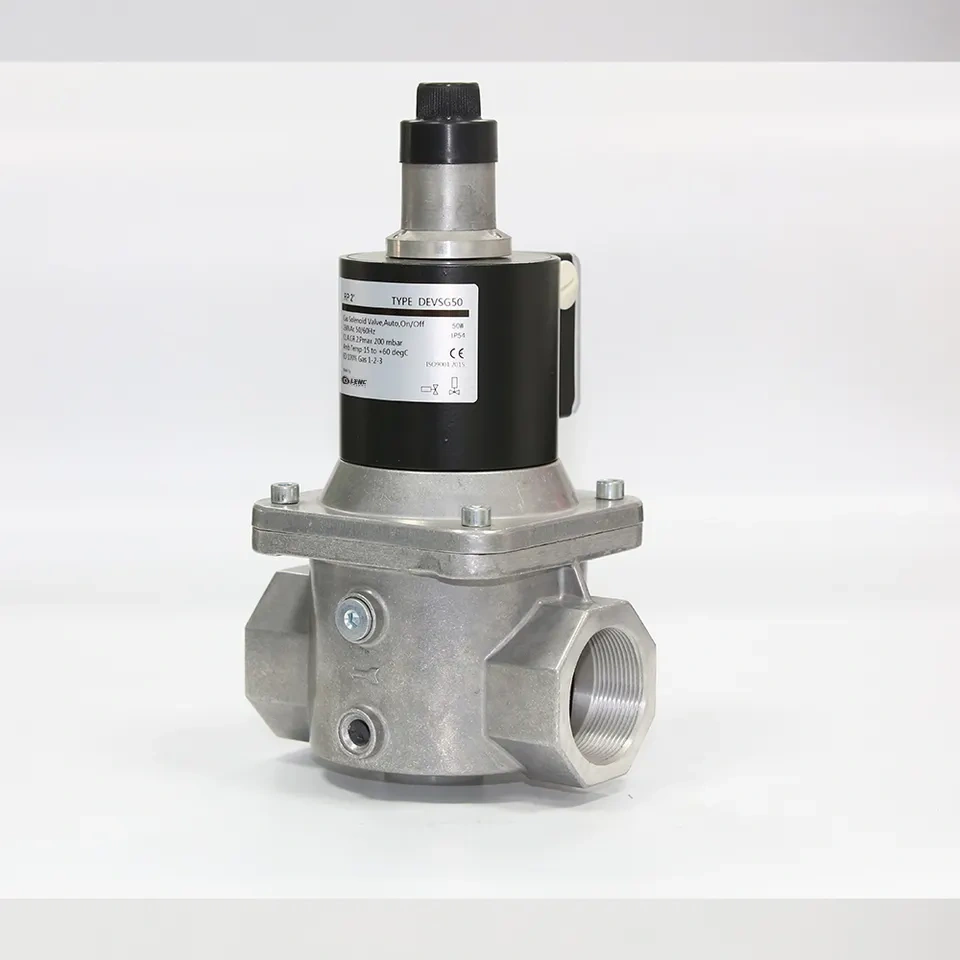

This type valve is slow opening, normally closed, with adjustable flow, opening time and adjustable initial lift.
When it’s not energized, the spring works on the disc keeping the passage closed; while it’s energized, the valve opens rapidly to the set initial lift, then slowly open with set time.
Max pressure:
DN10-25:360mbar;
DN32-100: 200mbar
-15℃-60℃,two way, normally closed, Ip54
